DS1995L-F5+ NVRAM 16Kb

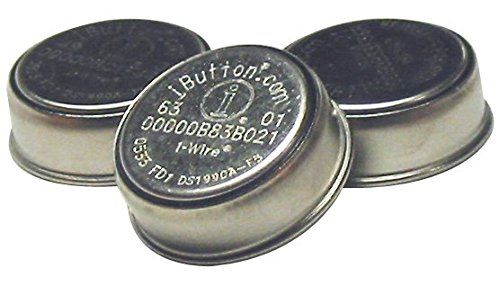

The iButton® 16Kb memory (DS1995) operates nearly identically to the DS1996. The main differences are: 16Kb of memory organized as 64 pages of 32 bytes and a family code of 0A hexadecimal. For further details please refer to the DS1996 data sheet.

Key Features

• 16384 bits of read/write nonvolatile memory
• 256-bit scratchpad ensures integrity of data transfer
• Overdrive mode boosts communication to 142kbps
• Memory partitioned into 256-bit pages for packetizing data
• Data integrity assured with strict read/write protocols
• Operating temperature range from -40°C to +70°C Over 10 years of data retention
